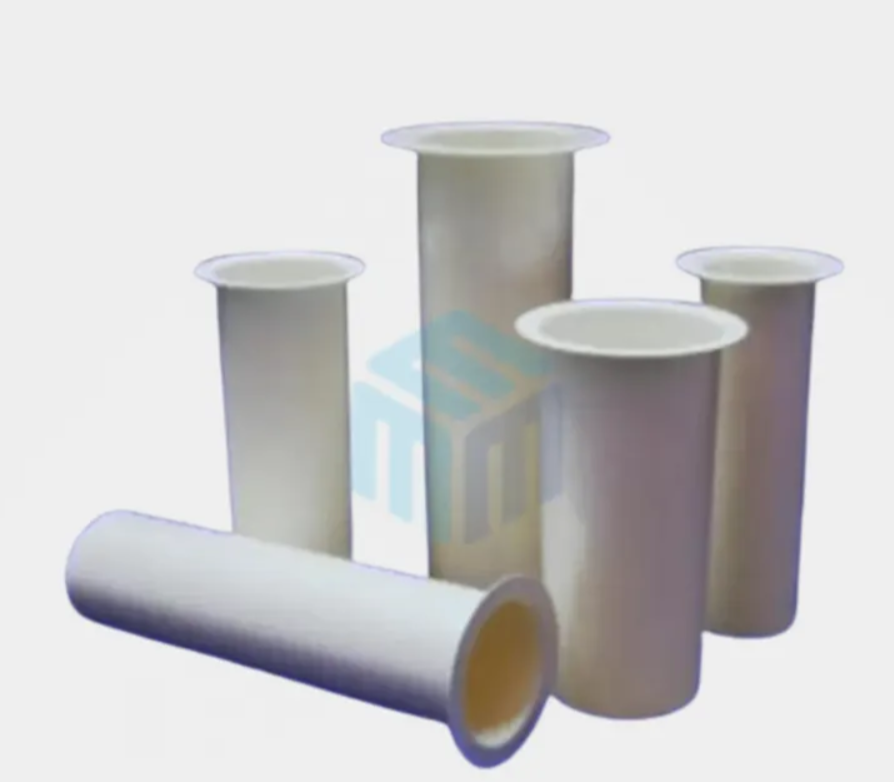

Boron nitride crucibles have become indispensable in modern labs and high-tech manufacturing, thanks to their outstanding thermal stability, chemical inertness, and excellent thermal shock resistance. Whether it’s for crystal growth, molten metal handling, or advanced semiconductor processes, these crucibles outperform many traditional ceramics.

Yet even with their robust properties, users sometimes encounter an all-too-frustrating issue: cracking.

If you've recently noticed your BN crucible developing hairline fractures or outright breaking, you’re not alone. The good news? Most cracking issues can be traced back to identifiable causes — and with the right precautions, they can be largely avoided.

Let’s explore why boron nitride crucibles crack, how to prevent this, and what to look for when choosing a reliable boron nitride crucible supplier.

Why Use Boron Nitride Crucibles in the First Place?

Before diving into failure reasons, it’s worth revisiting why so many industries are switching to boron nitride crucibles:

• Exceptional thermal conductivity: They dissipate heat efficiently, reducing thermal gradients.

• Low thermal expansion: They tolerate rapid heating and cooling better than many ceramics.

• Chemical inertness: Ideal for reactive metals like aluminum, titanium, or rare earths.

• Non-wettability: Metals like Al or Mg don’t stick to BN, simplifying cleaning.



Given these advantages, it’s easy to see why labs and manufacturers invest in these premium crucibles. That makes it all the more important to understand what leads to premature cracking.

Common Causes of Cracking in Boron Nitride Crucibles

1️ Thermal Shock from Rapid Heating or Cooling

Even though BN has a lower coefficient of thermal expansion (CTE) than many ceramics, no crucible is immune to thermal stress.

• What happens?
  If you heat a small boron nitride crucible from room temperature to 1000°C too quickly, or quench it abruptly, thermal gradients set up inside the material. The outside may expand or contract faster than the inner walls, leading to internal stresses that eventually crack.

• Solution:
  Use controlled ramp rates. Typically, heating or cooling at ≤5°C per minute is recommended, especially for thicker-walled or custom boron nitride crucible designs.



2️ Non-Uniform Heating

In furnaces without adequate temperature uniformity, hot spots may develop. If one side of the bn crucible reaches 1200°C while the other lags at 900°C, the resulting expansion mismatch can cause cracking.

• Solution:
  Always ensure your furnace or hot zone has good temperature uniformity. Avoid placing the crucible too close to heating elements. Many advanced boron nitride crucible suppliers can offer design tweaks like slightly thicker walls to handle uneven heat if needed.

3️ Mechanical Stress from Mishandling

BN is somewhat soft compared to alumina or zirconia, and it can be brittle under impact.

• What happens?
  Knocking the crucible edge on a furnace rim or dropping metal tongs onto it can initiate microcracks. These often propagate under subsequent thermal cycling.

• Solution:
  Handle with care. Always use padded tongs designed for ceramic labware. Place BN crucibles on soft firebrick or graphite pads rather than hard metal surfaces.



4️ Reaction with Aggressive Atmospheres

Although BN is highly resistant to most chemicals, under certain conditions it can react:

• In humid, oxidizing atmospheres at high temperatures, BN may slowly oxidize to B₂O₃, which is glassy and can promote cracking upon cooling.

• With alkali or alkaline earth oxides, BN can form low-melting eutectics.

• Solution:
  Run processes in controlled atmospheres (like argon or nitrogen). If working in air, keep the temperatures within the safe limits recommended by your boron nitride crucible supplier.



5️ Improper Cleaning

Some labs attempt to clean BN crucibles by aggressive grinding or by using metal scrapers. This introduces surface defects that can grow under thermal cycling.

• Solution:
  BN is non-wetting for many metals. Usually, gentle brushing or wiping is sufficient. If stubborn residues form, mild abrasion with a soft pad is acceptable, but avoid hard tools.

Choosing the Right Boron Nitride Crucible Matters

Not all BN crucibles are the same. Differences in purity, density, and fabrication (hot-pressed vs isostatically pressed) impact durability.

• High-purity boron nitride crucibles (typically >99.5% BN) have fewer impurities that could lead to microstructural weaknesses.

• Isostatically pressed BN often has more uniform grain structure, reducing stress points.



When sourcing, look for trusted boron nitride crucibles for sale with clear material data sheets. A reputable boron nitride crucible supplier should provide:

• Grain size and density specs

• Thermal conductivity and expansion coefficients

• Maximum recommended operating temperatures in your process environment



If you have unique needs — for instance a deep cavity or very thin walls — explore options for a custom boron nitride crucible that’s engineered specifically to withstand your thermal cycles.

Practical Tips to Extend Crucible Life

To minimize the risk of cracking:

•  Ramp gradually: Keep heating and cooling rates conservative.

•  Ensure uniform heat: Use a properly calibrated furnace with good airflow or staged element design.

• Use soft supports: Place crucibles on graphite or insulating firebrick, not steel trays.

• Avoid direct flame: Always heat indirectly.

• Handle gently: Avoid impacts. Store crucibles separately to prevent accidental knocking.

• Maintain clean atmospheres: Particularly important in semiconductor or optical crystal growth.

What If Your Crucible Cracked Anyway?

If your small boron nitride crucible cracks, it’s unfortunately not advisable to continue using it. Even hairline cracks can propagate, leading to sudden failure and loss of expensive melts or samples. However, slight superficial crazing that doesn’t penetrate through the wall may still be serviceable for non-critical tasks. When in doubt, consult your supplier.

Conclusion: Avoid Cracking with the Right Practices and Suppliers

Boron nitride crucibles are remarkable tools for handling demanding processes — from molten metals to semiconductor crystals. Their superior thermal and chemical performance makes them worth the investment. By understanding common reasons why a BN crucible might crack, and by sourcing from a trusted boron nitride crucible supplier, you’ll dramatically reduce the risk of costly failures.
